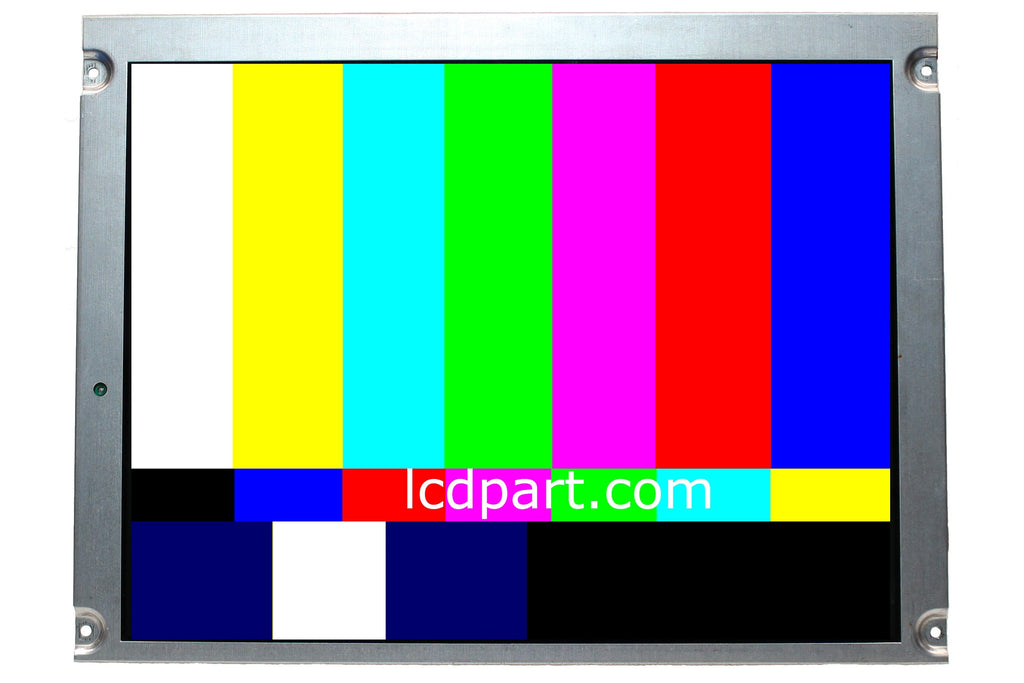

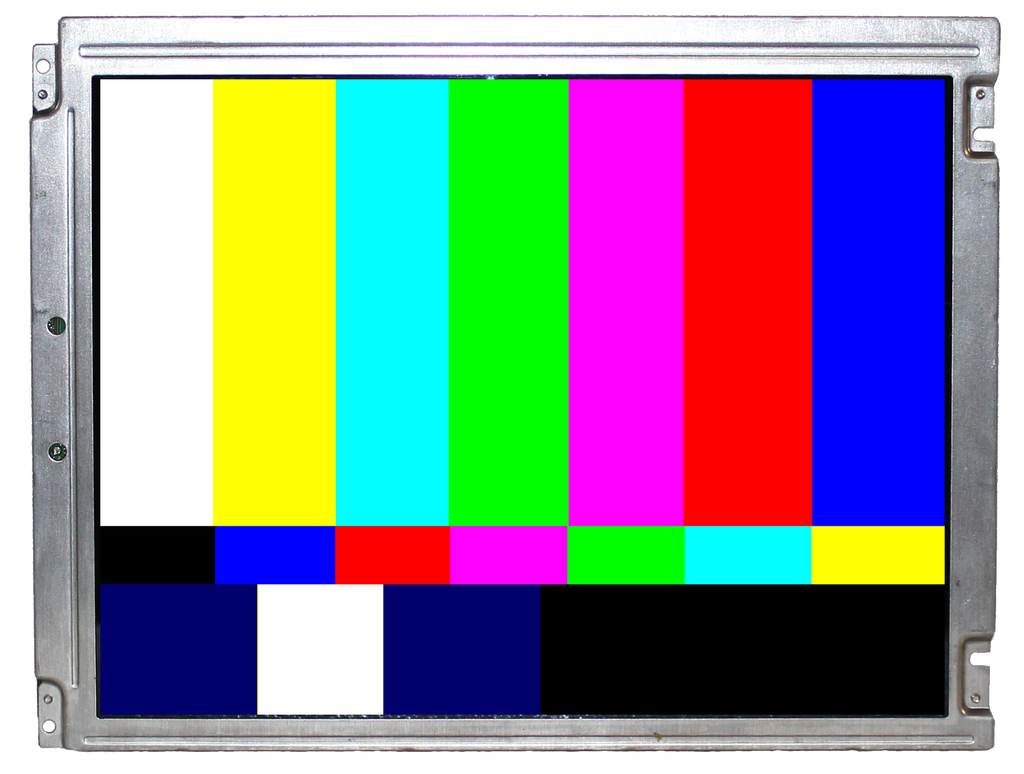

2711P-T10C22A9P-LCD is a direct replacement for Allen Bradley 2711P-T10C22A9P. 2711P-T10C22A9P-LCD has a much better image quality and is much brighter than old 2711P-T10C22A9P. Wider viewing angle and faster response time then old 2711P-T10C22A9P. 2711P-T10C22A9P-LCD has upgraded our 2711P-T10C22A9P-LEDKIT and 2711P-T10C22A9P-LCD will last 10X longer than CCFL lamps.
A wire adapter is included. No technical skills required! No soldering required! It is easy to Install! Anyone can do it! 1 year warranty.
Installation takes about 15 minutes.
Disconnect CCFL lamp wire harness from power supply
Disconnect Screen wire harness on on mainboard
Remove old 2711P-T10C22A9P LCD screen
Mount 2711P-T10C22A9P-LCD back to the same location
Connect Screen wire harness to 2711P-T10C22A9P
Connect Red wire to +12V (or+24V) and Black wire to ground on power supply board
2711P-T10C22A9P-LCD has the same interface connector, dimension and screw hole as the old 2711P-T10C22A9P.
2711P-T10C22A9P-LCD included the following items:
1) LCD screen ( it has upgraded to Sunlight Readable LED kit)
1) MS610UB LED driver
1) A 6 pins pigtail connector
