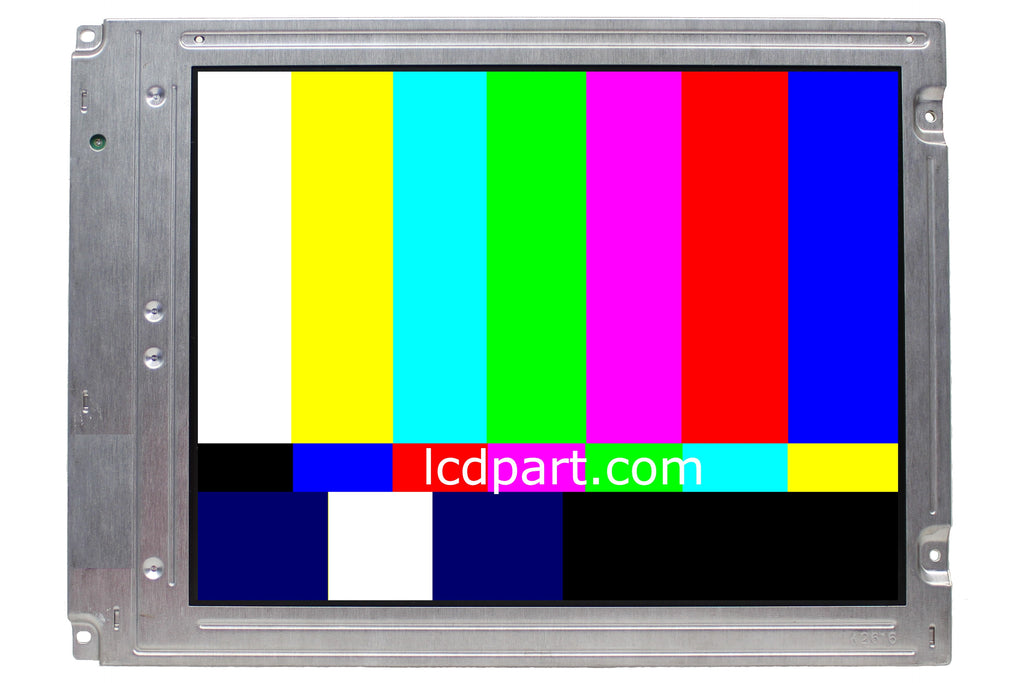

2880045-01-LCD is a direct replacement for Pro-face 2880045-01(alias CQPICTDE0000-A). 2880045-01-LCD has a much better image quality and is much brighter than old 2880045-01. Wider viewing angle and faster response time then old 2880045-01. 2880045-01-LCD has upgraded our Sunlight Readable LED Kit and 2880045-01-LCD will last 10X longer than CCFL lamps.
MS235EXT wire adapter is included. No technical skills required! No soldering required! It is easy to Install! Anyone can do it! 1 year warranty.
Installation takes about 15 minutes.
Disconnect CCFL lamp wire harness from CCFL inverter
Disconnect Screen wire harness on Pro-Face 2880045-01
Remove old Pro-Face 2880045-01 LCD screen
Mount 2880045-01-LCD back to the same location
Connect Screen wire harness to 2880045-01-LCD
Connect LED wire adapter to the existing inverter wire harness and remove inverter
2880045-01-LCD has the same interface connector, dimension and screw hole as the old Pro-face 2880045-01(alias CQPICTDE0000-A).
2880045-01-LCD included the following items:
1) LCD screen ( it has upgraded to Sunlight Readable LED kit)
1) MS610UB LED driver
1) MS235EXT wire adapter
