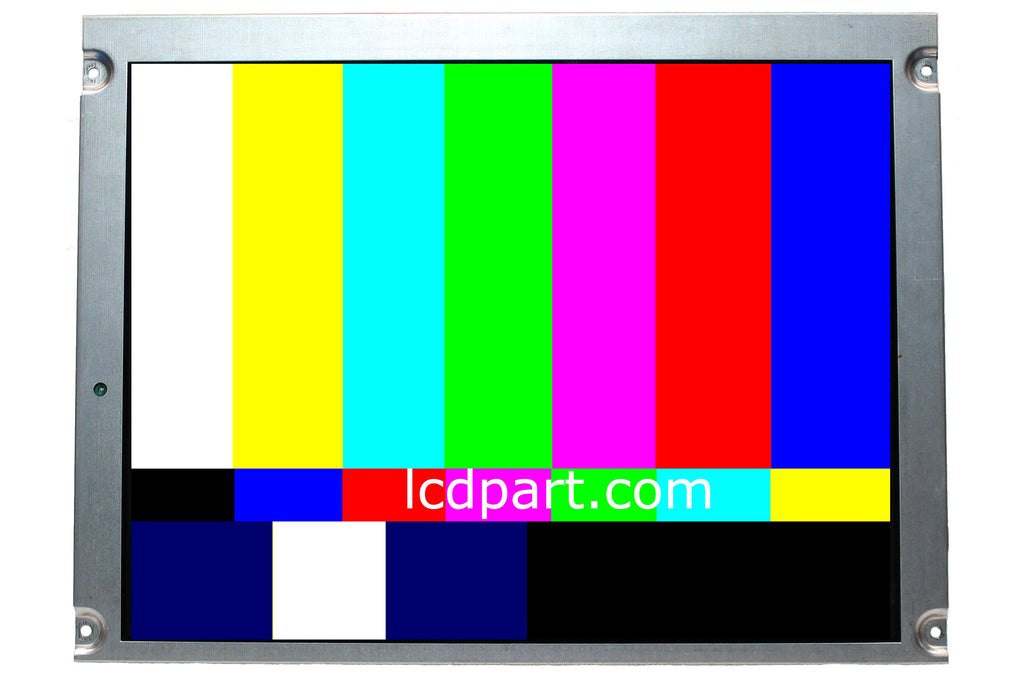

3180021-03-LCD is a direct replacement for Pro-face 3180021-03. 3180021-03-LCD has a much better image quality and is much brighter than old 3180021-03. Wider viewing angle and faster response time then old 3180021-03. 3180021-03-LCD has upgraded our Sunlight Readable LED Kit and 2711-K10C1-LCD will last 10X longer than CCFL lamps.
A wire adapter is included. No technical skills required! No soldering required! It is easy to Install! Anyone can do it! 1 year warranty.

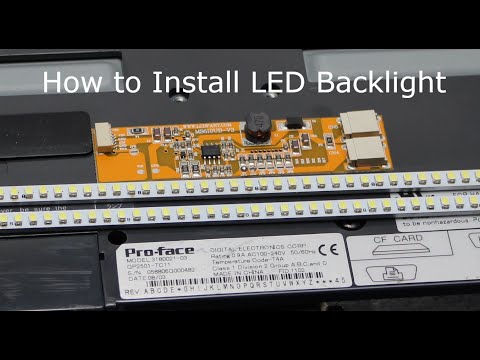

Installation takes about 15 minutes.
Disconnect CCFL lamp wire harness from CCFL inverter
Disconnect Screen wire harness on 3180021-03
Remove old 3180021-03 LCD screen
Mount 3180021-03-LCD back to the same location
Connect Screen wire harness to 3180021-03-LCD
Connect Red wire to Pin 3 and Black wire to pin 4 on power supply board's socket
3180021-03-LCD has the same interface connector, dimension and screw hole as the old Pro-face 3180021-03.
23180021-03-LCD included the following items:
1) LCD screen ( it has upgraded to Sunlight Readable LED kit)
1) MS610UB LED driver
1) A wire adapter
