Description

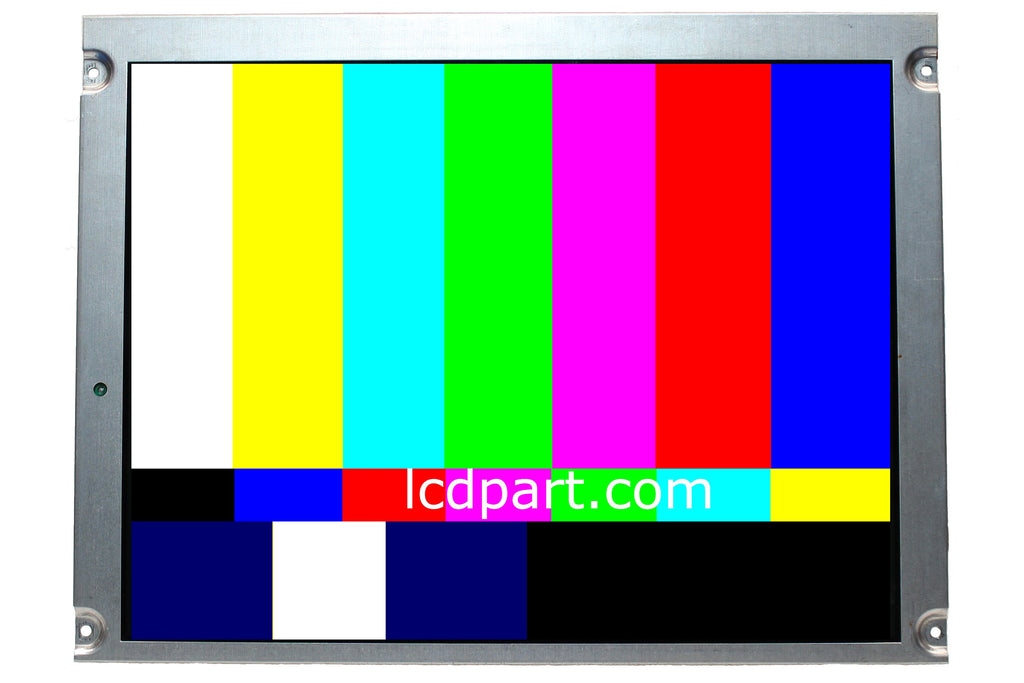

A02B-0236-B512-LCD is a direct replacement for Fanuc A02B-0236-B512. A02B-0236-B512-LCD has a much better image quality and is much brighter than old A02B-0236-B512. Wider viewing angle and faster response time then old A02B-0236-B512. A02B-0236-B512-LCD has upgraded our Sunlight Readable A02B-0236-B512-LEDKIT upgrade kit and A02B-0236-B512-LCD will last 10X longer than CCFL lamps.
No technical skills required! Soldering required! It is easy to Install! Anyone can do it! 1 year warranty.
Installation takes about 15 minutes.
Disconnect CCFL lamp wire harness from main board
Disconnect Screen wire harness on A02B-0236-B512
Remove old A02B-0236-B512
Mount A02B-0236-B512-LCD back to the same location
Connect Screen wire harness to A02B-0236-B512-LCD

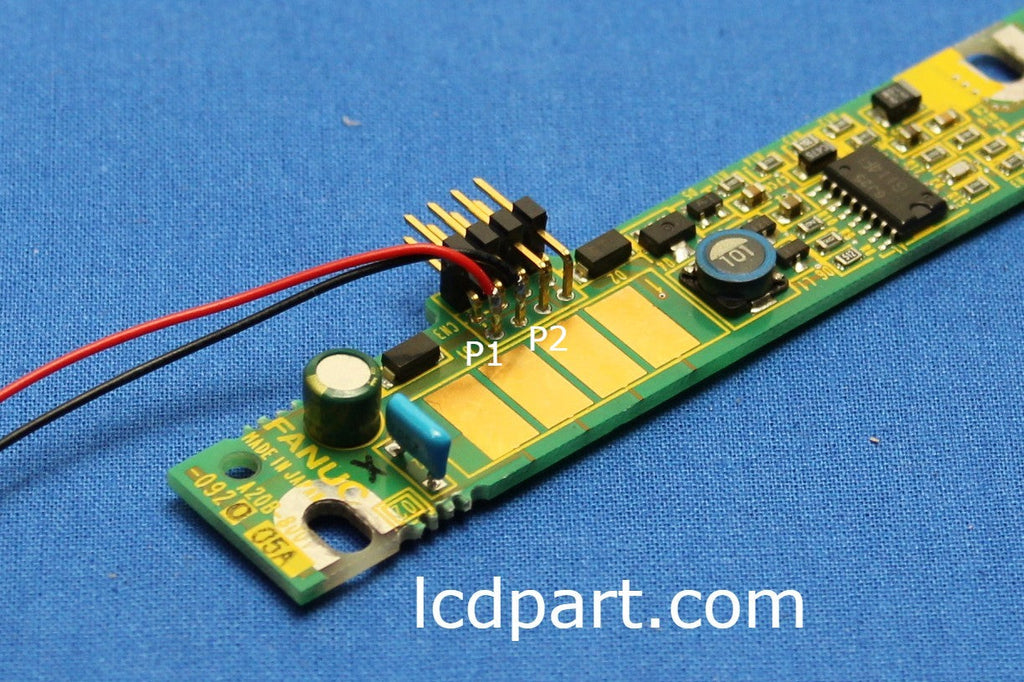

Solder Red wire to Pin 1 as shown on photo (Or can be connected directly to power supply Input positive terminal).
Solder Black wire Pin 2 as shown on photo(Or can be connected directly to power supply Input negative terminal).
A02B-0236-B512-LCD has the same interface connector, dimension and screw hole as the old A02B-0236-B512.
A02B-0236-B512-LCD included the following items:
1) LCD screen ( it has upgraded to Sunlight Readable LED kit)
1) MS610UB LED driver
