FCV-1100L-LCD is a direct replacement for FURUNO FCV-1100L. FCV-1100L-LCD has a much better image quality and is much brighter than old FCV-1100L. Wider viewing angle and faster response time then old FCV-1100L. FCV-1100L-LCD has upgraded our Sunlight Readable LED Kit and FCV-1100L-LCD will last 10X longer than CCFL lamps.
A wire connector is included. No technical skills required! Soldering required! It is easy to Install! Anyone can do it! 1 year warranty.
Installation takes about 15 minutes.
Disconnect CCFL lamp wire harness from CCFL inverter
Disconnect Screen wire harness on FURUNO FCV-1100L
Remove old FCV-1100L LCD screen
Mount FCV-1100L-LCD back to the same location
Connect Screen wire harness to FCV-1100L-LCD

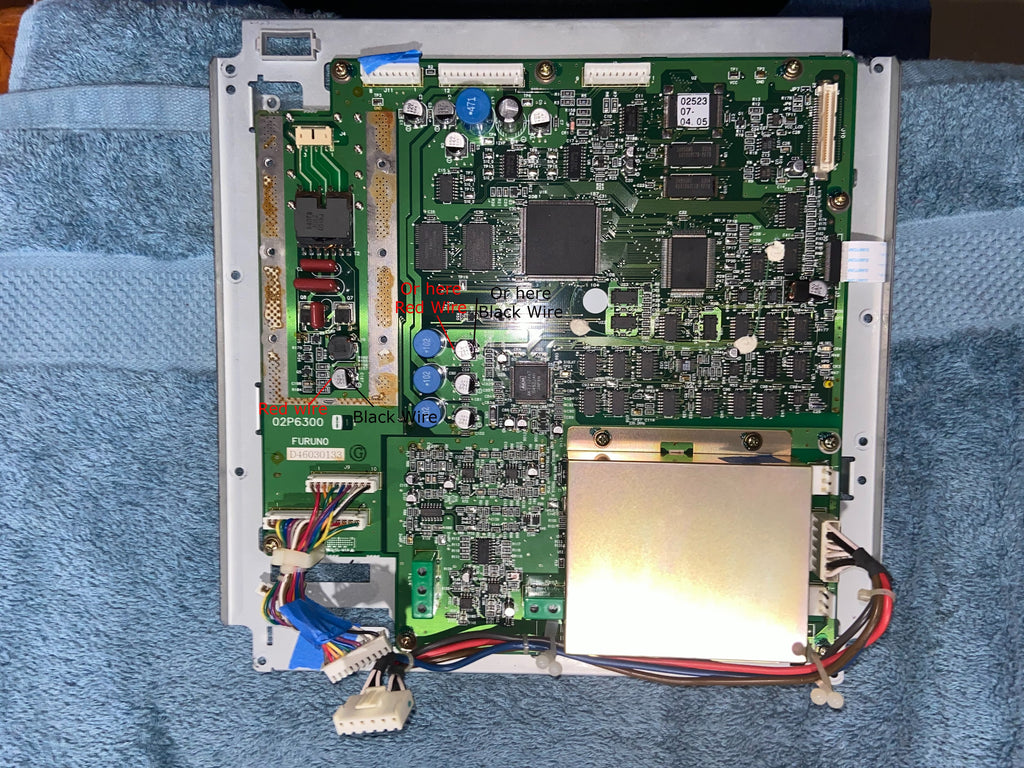

Solder Red wire to +12V(C197 can capacitor positive) and Solder Black wire (C197 can capacitor Negative) to ground on power supply board
FCV-1100L-LCD has the same interface connector, dimension and screw hole as the old FURUNO FCV-1100L.
FCV-1100L-LCD included the following items:

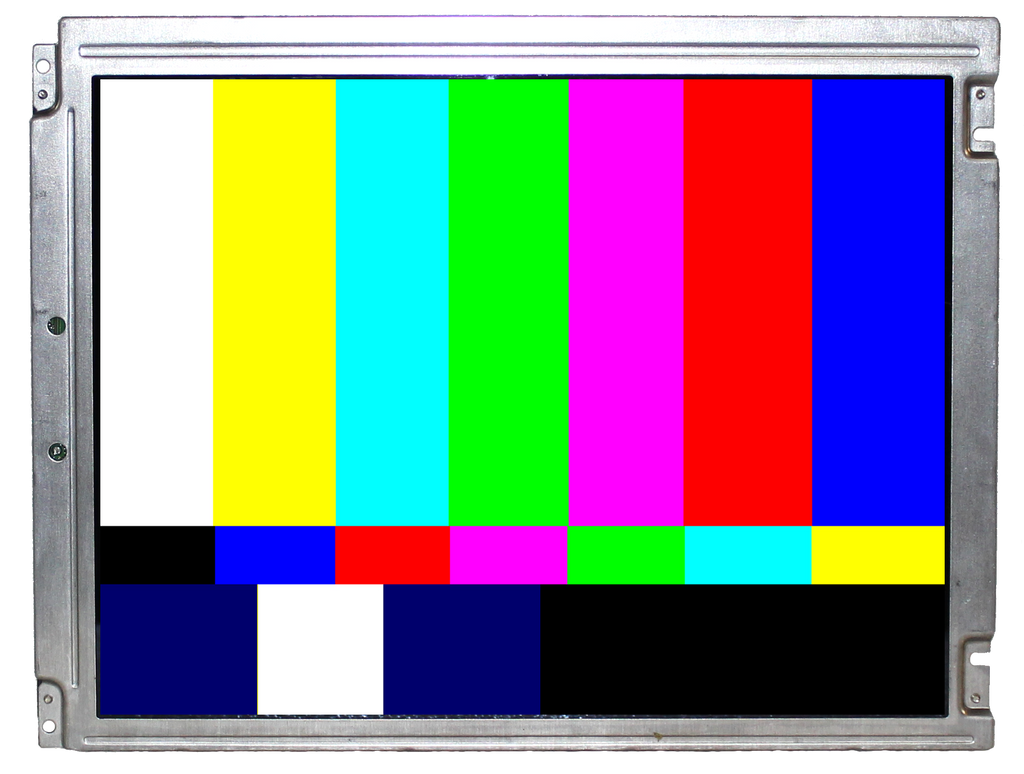

1) LCD screen ( it has upgraded to Sunlight Readable LED kit)
1) MS610UB LED driver
1) A 6 pins pigtail connector
