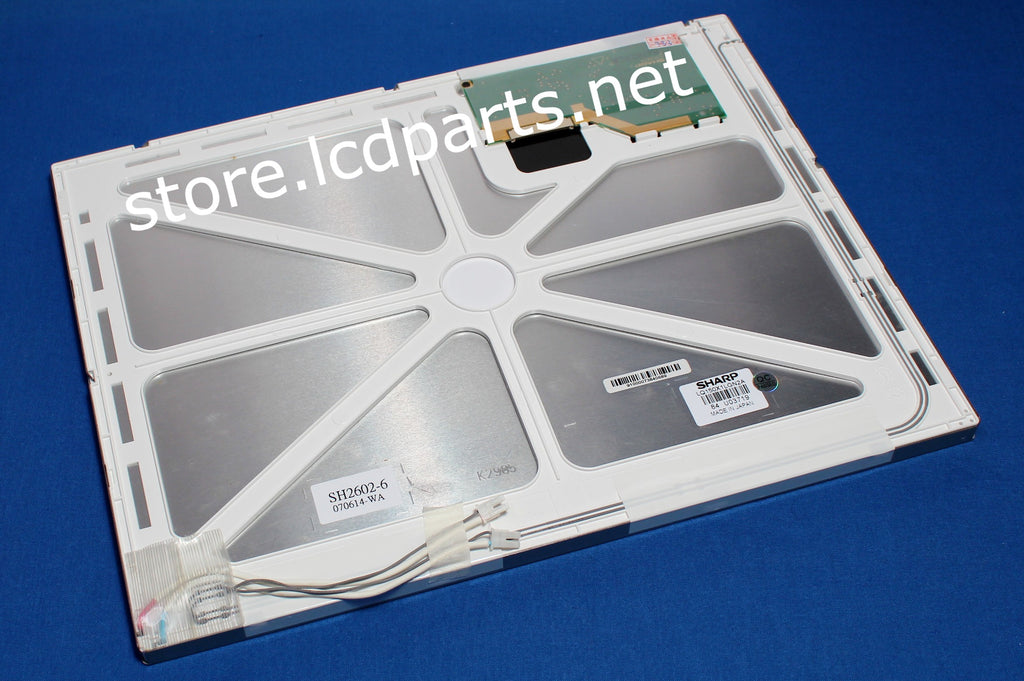

LQ150X1LGN2A 15 inch Sharp LCD screen



This refurbished Sharp LQ150XLGN2A LCD screen has been replaced with our new CCFL backlight lamps, new polarize film and tested. There are no scratches and no pressure marks on the screens. 30 days money back guaranteed! Like new conditions! 90 days warranty
Sharp LQ150XLGN2A, one of the most popular LCD panels in an industrial application. This 15 inch Sharp LQ150XLGN2A is originally equipped with dual CCFL backlight lamps. To extend its life and improve its performance, upgrading it to our UB Series LED kit is the best option(LED Upgrade kit for sharp LQ150XLGN2A is Listed below). As they are a solid state semiconductor device, LED has a longer lifespan, typically lasting over 100,000 hours.
Six pin pigtail connector is included. It is easy to Install! Anyone can do it!
General Specifications:
Item Unit Specifications
Screen Size [inch] 15.0
Native Resolution 1024 X 768
Active Area [mm] 304.1(H) X 228.1(V)
Outline dimension [mm] 326.0(W) X 252.0(H) X 11.0(D)
Bolt Hole Dimension [mm] 200 X 200
Input Voltage VDD [Volt] 3.3V
Screen Wire Harness DF14-20P-1LVDS
Electrical Interface LVDS (6-bit), P20, 6B=OP, 8B=H
White Luminance [cd/m2] 260
Contrast Ratio 350
BackLight Connector BHR-02VS-1X2
Backlight Inverter Sub MS496DI+MS195EXT
Response time, Rising msec 5
Response time, Falling msec 20
Viewing Angle - Horizontal degree 80
Viewing Angle - Vertical degree 60
Compatible with MS150RBHR03X2DF1420D36B
LCD controller kit DF14-20P-1LVDS_1024X768-6B
