Description

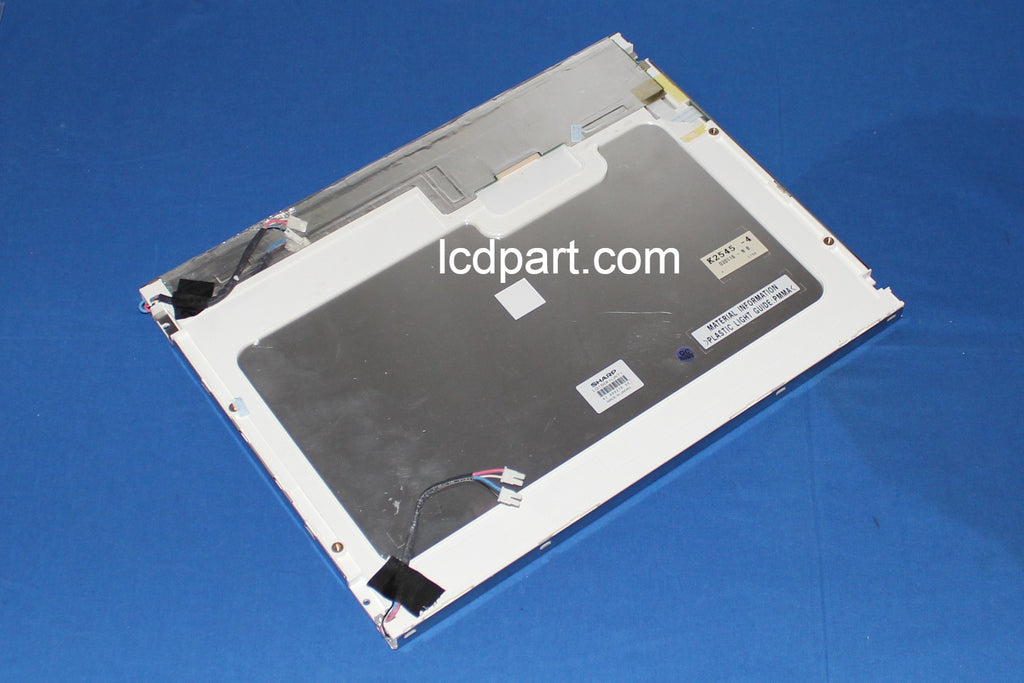

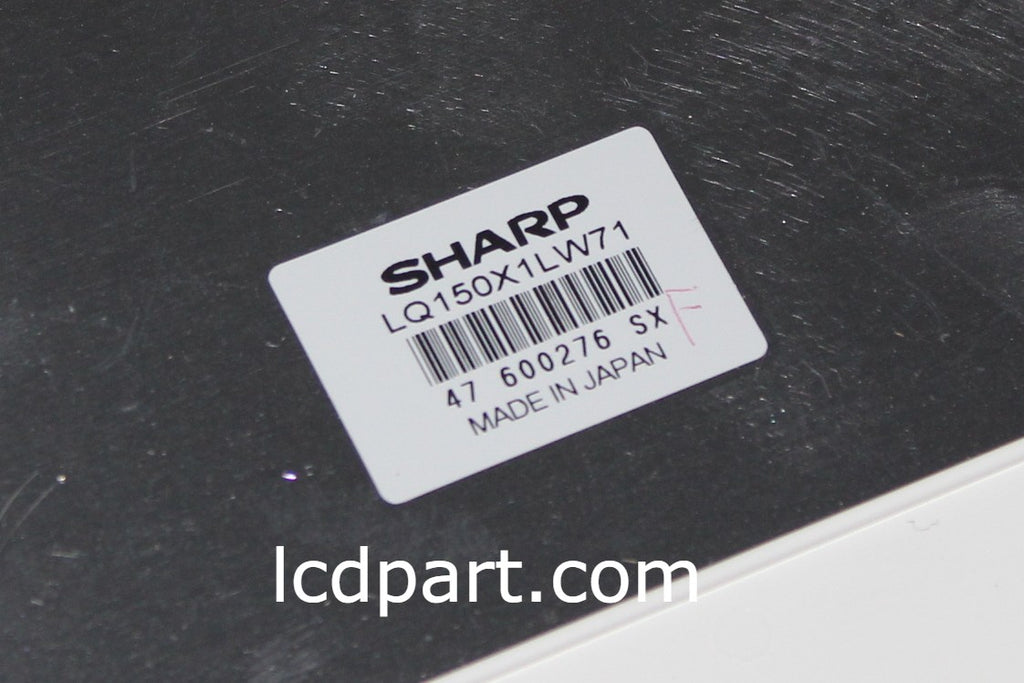

This refurbished Sharp LQ150X1LW71 LCD screen has been replaced with our new CCFL backlight lamps, new polarize film and there are no scratches and no pressure marks on the screens. Guaranteed! Like new condition ! 90 days warranty.
Sharp LQ150X1LW71 , one of the most popular LCD panels in an industrial application. This 15 inch Sharp LQ150X1LW71 is originally equipped with dual CCFL backlight lamps. To extend its life and improve its performance, upgrading it to our LQ150X1LW71-LEDKIT upgrade kit is the best option(LED Upgrade kit for sharp LQ150X1LW71 is Listed below). As they are a solid state semiconductor device, LED has a longer lifespan, typically lasting over 100,000 hours.
A LED wire adapter is included. It is easy to Install! Anyone can do it!
How Difficult Is It to Upgrade from CCFL to LED Kit?
General Specifications:
Item | Unit | Specifications |
Screen Size | [inch] | 15 |
Native Resolution | 1024 X 768 | |
Active Area | [mm] | 304.1(H) X 228.1(V) |
Outline dimension | [mm] | 331.6(W) X 254.76(H) X 12.5(D) |
Bolt Hole Dimension | [mm] | 200 X 212 |
Input Voltage VDD | [Volt] | 3.3V |
Screen Wire Harness | DF14-20P-1LVDS | |
Electrical Interface | LVDS(6-bit) | |
White Luminance | [cd/m2] | 250 |
Contrast Ratio | 400:1 | |
Backlight Connector | BHSR-02VS-1X4 | |
Backlight Inverter | Substitute MS30DI | |
Response time, Rising | msec | tr+tf=25 |
Response time, Falling | msec | N/A |
Viewing Angle - Horizontal | degree | 85 |
Viewing Angle - Vertical | degree | 85 |
LCD controller kit | DF14-20P-1LVDS_1024X768-6Bit | |
LED Backlight kit | LQ150X1LW71-LEDKIT |
