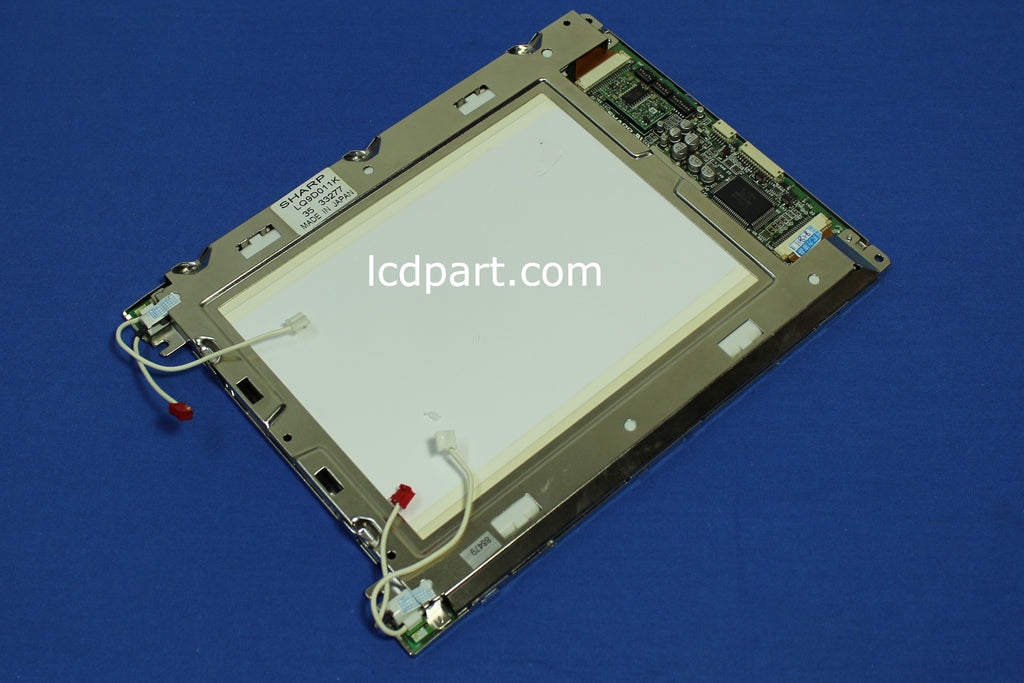

LQ9D011 is a very old LCD screen that is discontinued (obsolete). LQ9D011 is replace by LQ9D011-LCD. However, LQ9D011 is still available on the worldwide web. The condition of Sharp LQ9D011 varies widely. Such as are listed as new, good, used and refurbished. Unfortunately, because of its age. Sharp LQ9D011 is NOT RELIABLE at all nowadays. LQ9D011 will cause all kinds of problems in a short time period after replacement.
By analyzing the failure of old Sharp LQ9D011, our engineers had come up with a better solution. Which is a munch more dependable replacement for Sharp LQ9D011(Part Number is LQ9D011-LCD).  1 year Warranty. We ship worldwide.
General Specifications:
Item Unit Specifications
Screen Size [inch] 8.4
Native Resolution 640 X 480
Active Area [mm] 170.9(H) X 129.6(V)
Outline dimension [mm] 243.5(W) X 180(H) X 12(D)
Bolt Hole Dimension [mm] 132.6 X 166.6
Input Voltage VDD [Volt] 5.0V
Screen Wire Harness DF13-15P/DF13-6P
Electrical Interface TTL (6-bit)
White Luminance [cd/m2] 800 (LED)
Contrast Ratio 1:1000
BackLight Connector 2.0MM X 4
Backlight Inverter N/A
Response time, Rising msec 30
Response time, Falling msec 50
Viewing Angle - Horizontal degree 45
Viewing Angle - Vertical degree 30
