Description

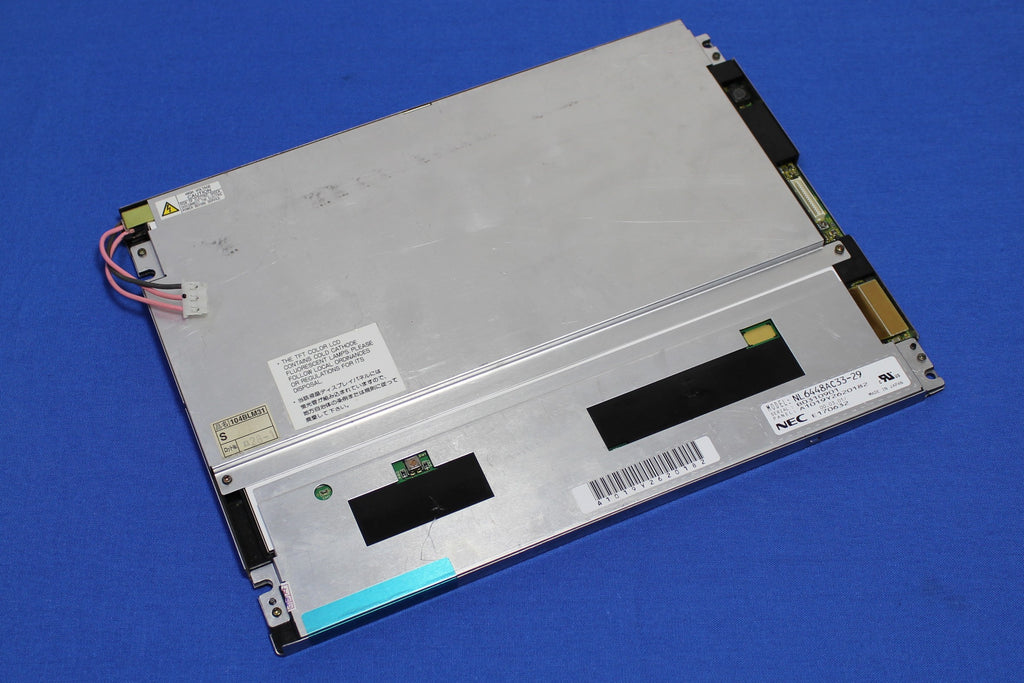

Refurbished NEC NL6448AC33-24 LCD Screen. 90 days warranty.
NEC NL6448AC33-18, one of the most popular LCD panels in an industrial application. This 10.4 inch NEC NL6448AC33-24 is originally equipped with dual CCFL backlight lamps. To extend its life and improve its performance, upgrading it to our 104LHS-LED LED kit is the best option(LED Upgrade kit for NEC NL6448AC33-24 is Listed below). As they are a solid state semiconductor device, LED has a longer lifespan, typically lasting over 100,000 hours.
Six pin pigtail connector is included. It is easy to Install! Anyone can do it!
General Specifications:
Item | Unit | Specifications (C13) |
Screen Size | [inch] | 10.4 |
Native Resolution | 640 X 480 | |
Active Area | [mm] | 211.2(H) X 158.4(V) |
Outline dimension | [mm] | 243.0(W) X 185.1(H) x 11.0(D) |
Bolt Hole Dimension | [mm] | 132.6 X 166.6 |
Input Voltage VDD | [Volt] | 3.3/5.0V |
Screen Wire Harness | TTL-DF9-31-2829 | |
Electrical Interface | TTL | |
White Luminance | [cd/m2] | 190 |
Contrast Ratio | 150:1 | |
BackLight Connector | BHR-03VS-1X1, 104LHS17L | |
Backlight Inverter | 104PWCR1-B | |
Response time, Rising | msec | 50 |
Response time, Falling | msec | 50 |
Viewing Angle - Horizontal | degree | 80 |
Viewing Angle - Vertical | degree | 80 |
LCD controller kit | TTL-DF9-31_640X480 | |
LED Backlight kit | 104LHS-LED | |
Direct Replacement LCD | MS104RD1 |
