Brand new NEC NL6448BC26-26F. 30 days money back guaranteed! 90 days warranty

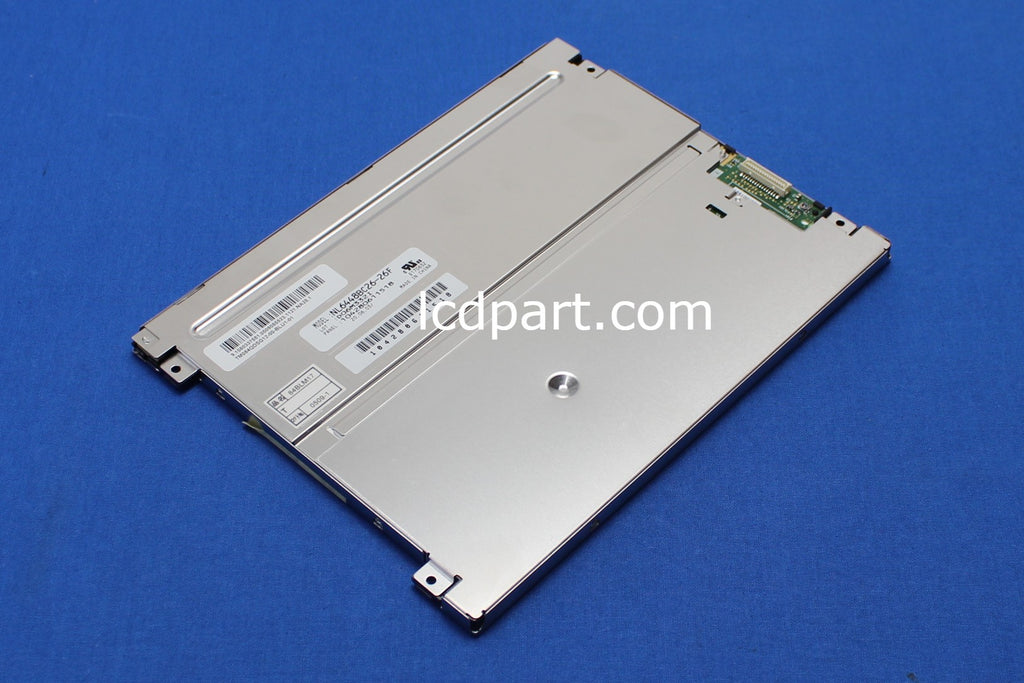

NEC NL6448BC26-26F, one of the most popular LCD screens in control of industrial and medical applications. This 8.4 inch NEC NL6448BC26-26F is originally equipped with its manufacturer's LED backlight strip and drive by external LED driver, which has typically 800 nits (based on its datasheet). By upgrading to our 84LHS-LED kit, it can reach 1600 nits or higher.
A wire connector is included. It is easy to Install! Anyone can do it!
LED upgrade kit for NEC NL6448BC26-26F is Listed below
|Native Resolution||640 X 480|
|Active Area||[mm]||170.88(H) X 128.16(V)|
|Outline dimension||[mm]||200.0(W) X 152.0(H) x 8.2(D)|
|Bolt Hole Dimension||[mm]||112 X 112|
|Input Voltage VDD||[Volt]||3.3/5.0V|
|Screen Wire Harness||TTL-DF9-31-2829|
|Electrical Interface||TTL (6-bit)|
|BackLight Connector||SHR-08V-S, 84LHS17|
|Response time, Rising||msec||3|
|Response time, Falling||msec||15|
|Viewing Angle - Horizontal||degree||80|
|Viewing Angle - Vertical||degree||80|
|LCD controller kit||TTL-DF9-31_640X480|
|LED Backlight kit||84LHS-LED|
