NL8060BC21-11F


Price:
$259.99

Description

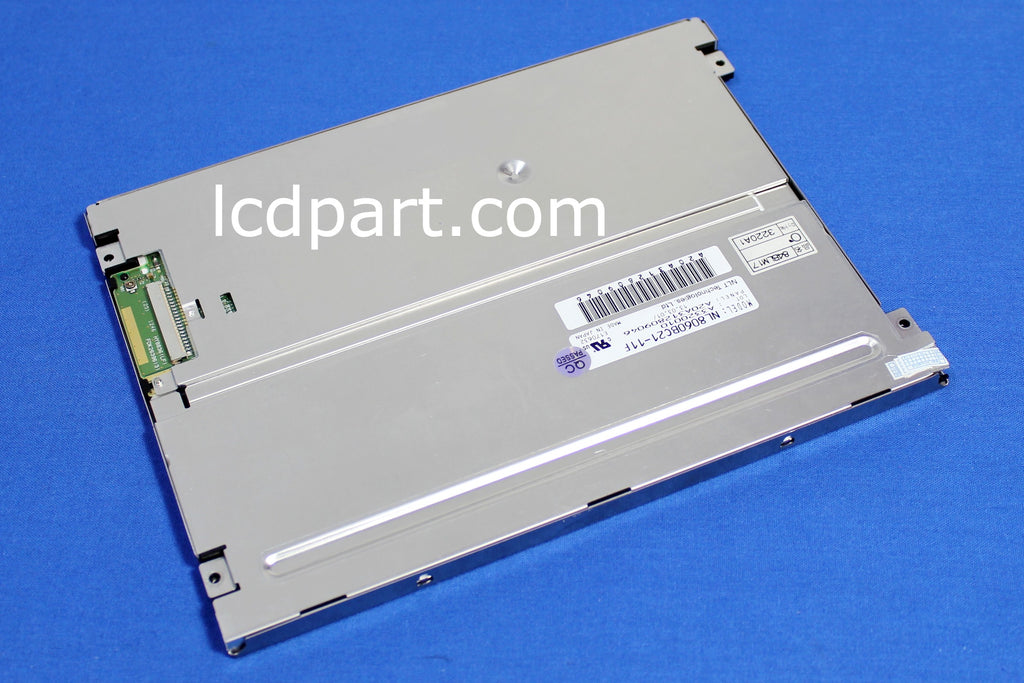

NEC NL8060BC21-11F, one of the most popular LCD screens in control industrial and medical applications. This 8.4 inch NEC NL8060BC21-11F is originally equipped with its manufacturer's LED backlight strip with built-in LED driver, which has typically 800 nits (based on its datasheet). By upgrading to our SB series LED kit, it can reach 1500 nits or higher.

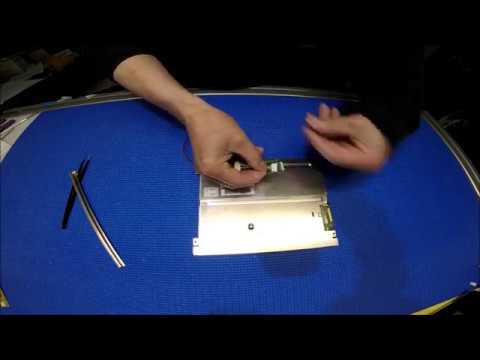

Six pin pigtail connector is included. It is easy to Install! Anyone can do it!
General Specifications:
Item Unit Specifications (C15)
Screen Size [inch] 8.4
Native Resolution 800 X 600
Active Area [mm] 170.4(H) X 127.8(V)
Outline dimension [mm] 200.0(W) X 150.2(H) x 10.5(D)
Bolt Hole Dimension [mm] 112 X 112
Input Voltage VDD [Volt] 3.3V
Screen Wire Harness DF14-20P-1LVDS-R
Electrical Interface LVDS (6-bit)
White Luminance [cd/m2] 800
Contrast Ratio 900:1
BackLight Connector SHR-08V-S, 8 pin 1.0mm, 84LHS17
Backlight Inverter 104PW03F
Response time, Rising msec 3
Response time, Falling msec 15
Viewing Angle - Horizontal degree 80
Viewing Angle - Vertical degree 80
LCD controller kit DF14-20P-1LVDS-R_800X600
LED Backlight kit UB35185LED3515X1+MS610UB+MS534EXT
