Description

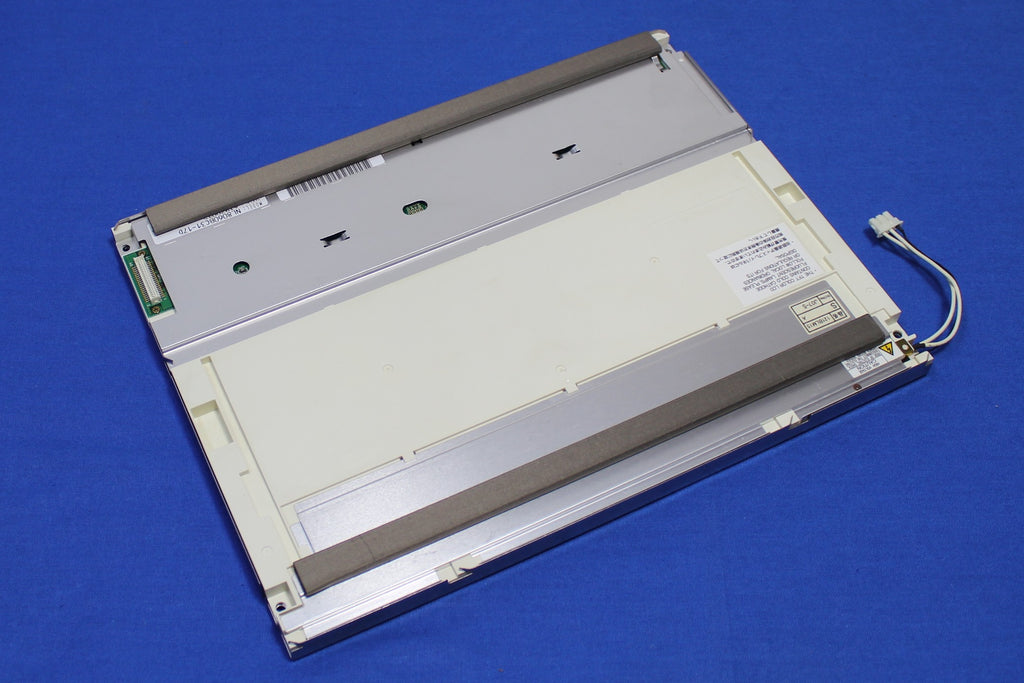

Brand New NEC NL8060BC31-17D LCD Screen. 90 days warranty.
NEC NL8060BC31-17D, one of the most popular LCD panels in an industrial application. This 12.1 inch NEC NL8060BC31-17D is originally equipped with dual CCFL backlight lamps. To extend its life and improve its performance, upgrading it to our 121LHS-LED LED kit is the best option(LED Upgrade kit for NEC NL8060BC31-17D is Listed below). As they are a solid state semiconductor device, LED has a longer lifespan, typically lasting over 100,000 hours.
Six pin pigtail connector is included. It is easy to Install! Anyone can do it!
General Specifications:
Item | Unit | Specifications |
Screen Size | [inch] | 12.1 |
Native Resolution | 800 X 600 | |
Active Area | [mm] | 246.0(H) X 184.5(V) |
Outline dimension | [mm] | 280.0(W) X 210(H) x 13.0(D) |
Bolt Hole Dimension | [mm] | 181.3 X 181.3 |
Input Voltage VDD | [Volt] | 3.3/5V |
Screen Wire Harness | TTL-DF9-41-3940 | |
Electrical Interface | TTL (6-bit) | |
White Luminance | [cd/m2] | 350 |
Contrast Ratio | 350:1 | |
BackLight Connector | BHR-03VS-1X1, 121LHS15 | |
Backlight Inverter | 121PW111 | |
Response time, Rising | msec | 25 |
Response time, Falling | msec | 8 |
Viewing Angle - Horizontal | degree | 70 |
Viewing Angle - Vertical | degree | 55 |
LCD controller kit | TTL-DF9-41_800X600 | |
LED Backlight kit | 121LHS-LED |
