2711P-RDT10C-LCD is a direct replacement for Allen Bradley 2711P-RDT10C PanelView 1000. 2711P-RDT10C-LCD has a much better image quality and is much brighter than old 2711P-RDT10C. Wider viewing angle and faster response time then old 2711P-RDT10C. 2711P-RDT10C-LCD has upgraded our 2711P-RDT10C-LEDKIT and 2711P-RDT10C-LCD will last 10X longer than CCFL lamps.
A wire adapter is included. No technical skills required! No soldering required! It is easy to Install! Anyone can do it! 1 year warranty.
Installation takes about 15 minutes.
Disconnect CCFL lamp wire harness from power supply
Disconnect Screen wire harness on on mainboard
Remove old 2711P-RDT10C LCD screen

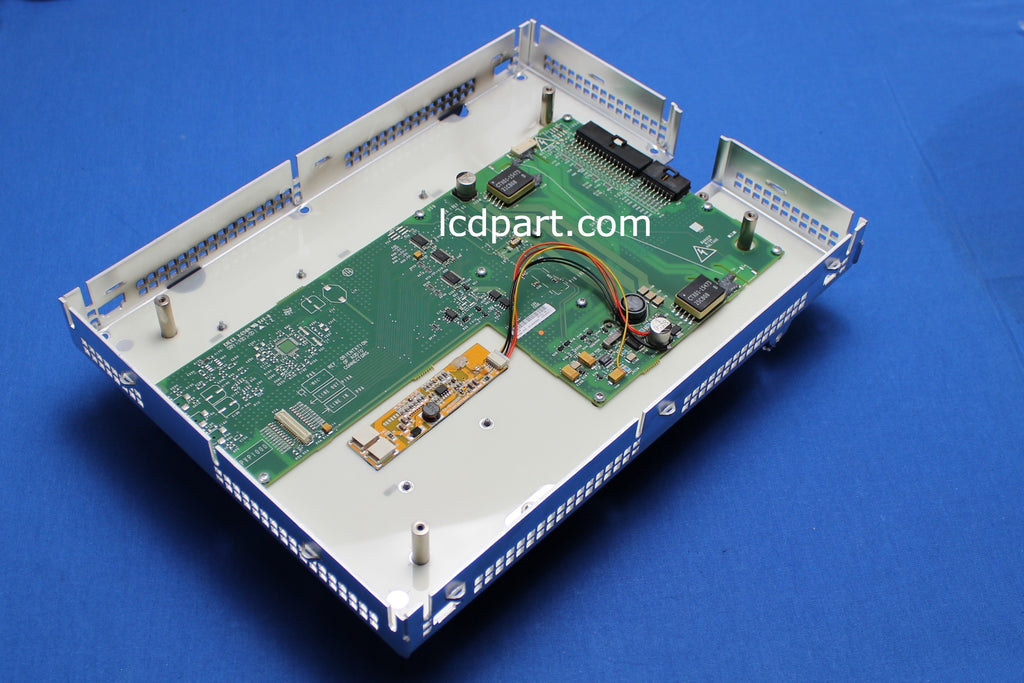

Mount 2711P-RDT10C-LCD back to the same location
Connect Screen wire harness to 2711P-RDT10C

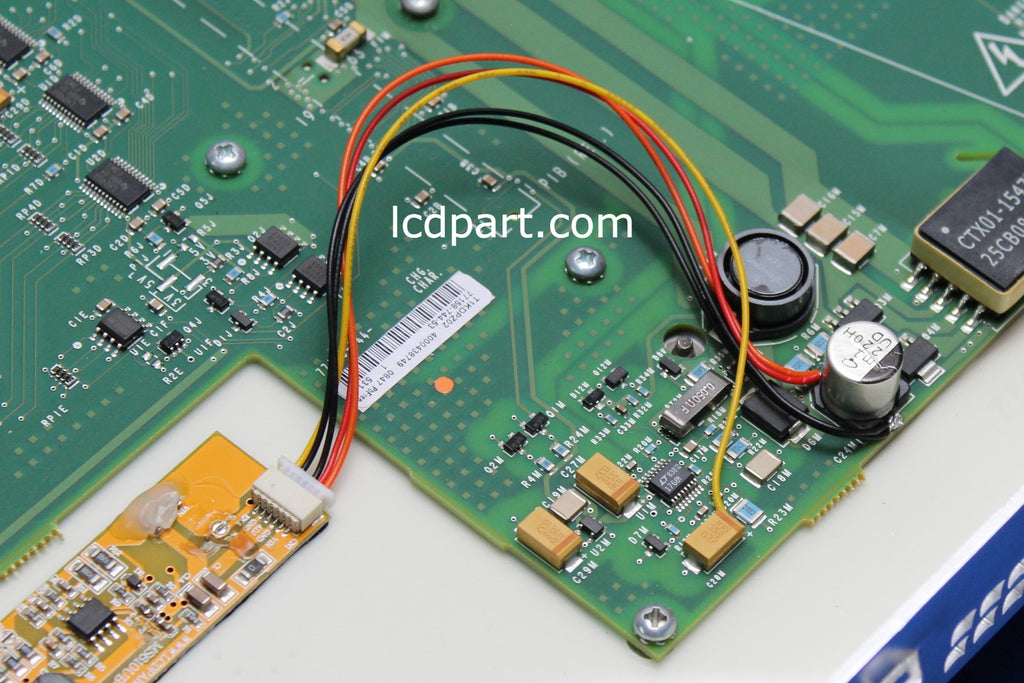

Connect Red wire to +12V (or+24V) and Black wire to ground on power supply board
2711P-RDT10C-LCD has the same interface connector, dimension and screw hole as the old FURUNO RDP-152.
2711P-RDT10C-LCD included the following items:

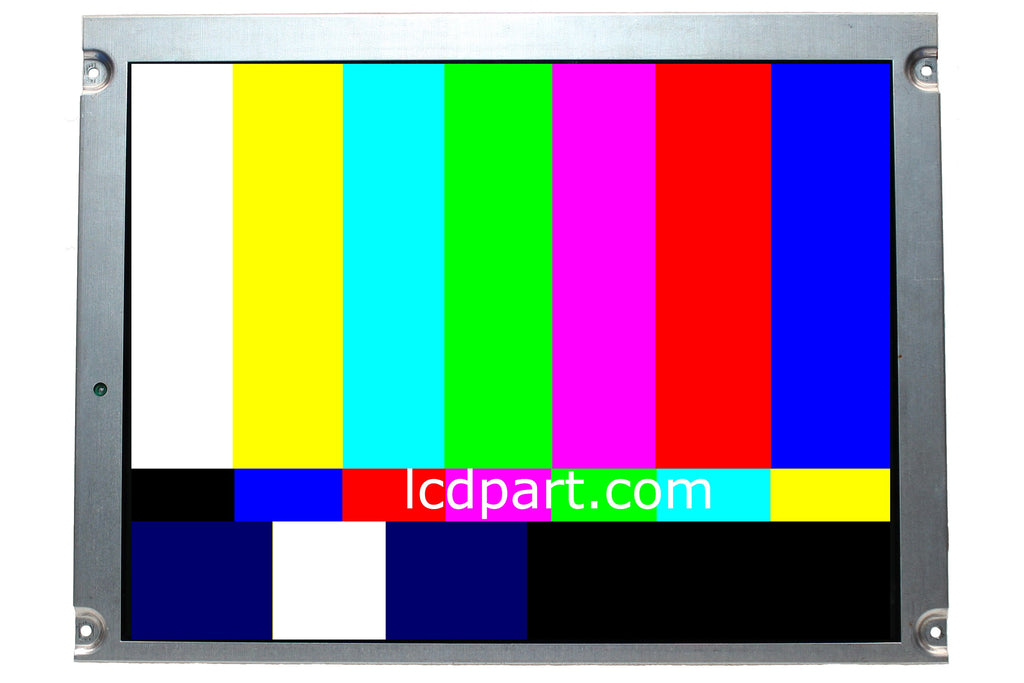

1) LCD screen ( it has upgraded to Sunlight Readable LED kit)
1) MS610UB LED driver
1) A 6 pins pigtail connector
